DM22F-04D Unboxed: What’s in the Box, Carton Size and Measured Height

By ShuoErgoLab ·

Contents of the DM22F-04D desk frame box laid out and numbered

Spec sheets tell you a lot, but not everything. So we took a DM22F-04D dual motor electric desk frame from our Auburn stock, opened the carton, weighed it and measured the frame. Here is exactly what arrives, so you can plan delivery, pickup and set-up.

The carton: size and weight

The frame ships in a single carton. The label lists:

  • Carton size: 105.5 × 34.5 × 16 cm
  • Gross weight: 20.7 kg
  • Net weight: 19.1 kg
  • Country of manufacture: China (marked "Made in PRC")

We checked it on our scale before shipping. The packed carton weighed 20.55 kg, and the empty carton with its foam weighed 1.55 kg. That leaves about 19.0 kg for the frame and parts, close to the 19.1 kg on the label.

DM22F-04D carton label showing 105.5 x 34.5 x 16 cm, 20.7 kg gross and 19.1 kg net, with the packed carton weighing 20.55 kg and the empty carton and foam 1.55 kg on a scale

The desktop is a separate product with its own carton. If you are collecting from Auburn, make sure your vehicle can take every carton:

Product Carton size Gross weight
DM22F-04D frame 105.5 × 34.5 × 16 cm 20.7 kg
DT-120 desktop 127 × 67 × 7 cm 11.8 kg
DT-140 desktop 147 × 77 × 7 cm 15.5 kg

How it is packed

Inside, every part sits in its own cut-out in white foam, with the user manual on top. The legs, feet, side brackets and crossbar are all in the same carton as the accessories.

Opened DM22F-04D carton with the frame parts and accessories packed in white foam cut-outs and the user manual on top

DM22F-04D white frame parts out of the carton: legs with top brackets, telescopic crossbar sections and a foot

What's in the box

Along with the frame parts, the carton holds:

  1. Hand controller with up/down buttons, three memory presets (1, 2, 3) and an M button
  2. Power adapter with an Australian plug
  3. Connection cable
  4. Cup holder and headphone hook
  5. Screw kit in bags A to E, with an Allen key
  6. Spare screws
  7. User manual in English, with a parts list

The desktop is not included. Choose the DT-120 (1200 × 600 mm) or DT-140 (1400 × 700 mm), or contact us about using your own.

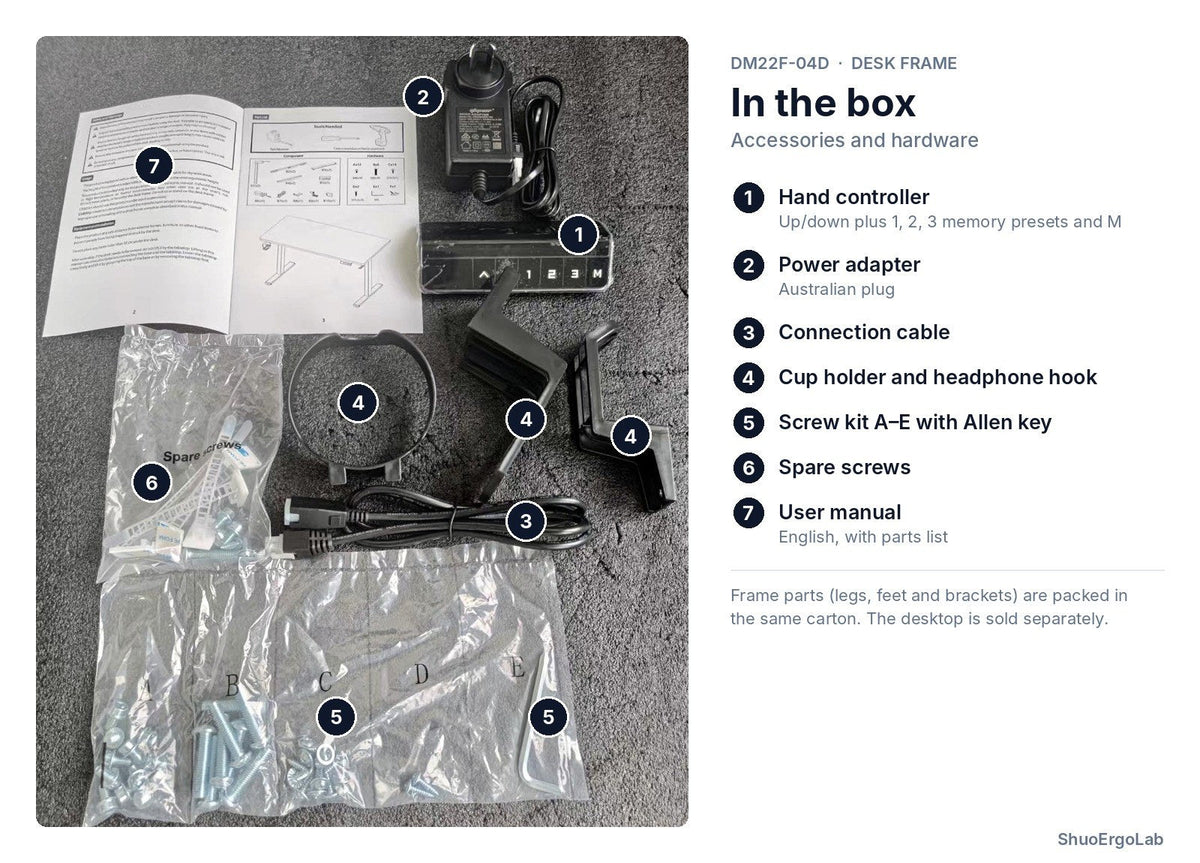

Contents of the DM22F-04D box laid out and numbered: hand controller, power adapter, connection cable, cup holder and headphone hook, screw kit with Allen key, spare screws and user manual

Measured height range

We measured the assembled frame with a tape measure, from the floor to the top of the frame, without a desktop:

  • Lowest position: about 71 cm
  • Highest position: about 116 cm
  • Travel: about 45 cm

Add your desktop's thickness to get the working height. With an 18 mm DT-120 or DT-140 desktop, that comes to roughly 73–118 cm, in line with the listed range of 730–1180 mm including desktop thickness.

Tape measure against the DM22F-04D frame without a desktop, showing about 71 cm at the lowest position and about 116 cm at the highest

Before you start assembly

  • Clear some floor space. The longest parts are around a metre long, and you will need room for the desktop as well.
  • Check the parts list first. Lay everything out and tick it off against the list in the manual before you begin.
  • Keep the carton and foam for now. If you want to make a change-of-mind return within 7 days of delivery, the item must be unused and returned with all original packaging, accessories and parts. See our refund policy.
  • Plan the power point. The power adapter needs a nearby outlet. Leave enough cable slack for the desk's highest position.

Delivery and pickup

Orders are dispatched from our Auburn NSW stock within 1–2 business days of payment. We deliver across mainland Australia (not Tasmania), and free pickup from our Auburn warehouse can be arranged after you order. See our shipping policy for rates and estimated delivery times.

Buying several desks? Discounts of 5%, 10% and 15% apply automatically at 5, 10 and 20 or more items across your order, and a frame and a desktop count as two items. Use the quick order table, or request a quote for 50 or more items.

Frequently asked questions

How big and heavy is the DM22F-04D carton?

The carton is 105.5 × 34.5 × 16 cm and weighs 20.7 kg gross (19.1 kg net).

Does the DM22F-04D come with a desktop?

No. It is a frame only. Desktops are sold separately.

Is the power adapter suitable for Australia?

Yes. The included power adapter has an Australian plug.

Is the manual in English?

Yes. The user manual is in English and includes a parts list.

Where is it made?

The carton is marked "Made in PRC" (China). We import the frames and hold stock at our warehouse in Auburn NSW.

How high does it go?

The listed range is 730–1180 mm including desktop thickness. On our tape measure, the frame alone went from about 71 cm to about 116 cm.

Still deciding? Read why choose an electric standing desk, and why dual motors matter, or see the DM22F-04D product page for the full specifications.
