DM22F-04D Dual Motor Electric Desk Frame – White
White
Bulk Shipping
We deliver to mainland Australia from our Sydney stock and aim to dispatch within 1–2 business days of payment. We don't currently deliver to Tasmania.
One delivery charge applies to your whole order, based on the number of items and the delivery state, and is shown at checkout. Free pickup from our Auburn NSW warehouse is also available.
Volume Discounts
5% off 5+, 10% off 10+, 15% off 20+.
Discounts are applied automatically in your cart based on the quantity ordered.

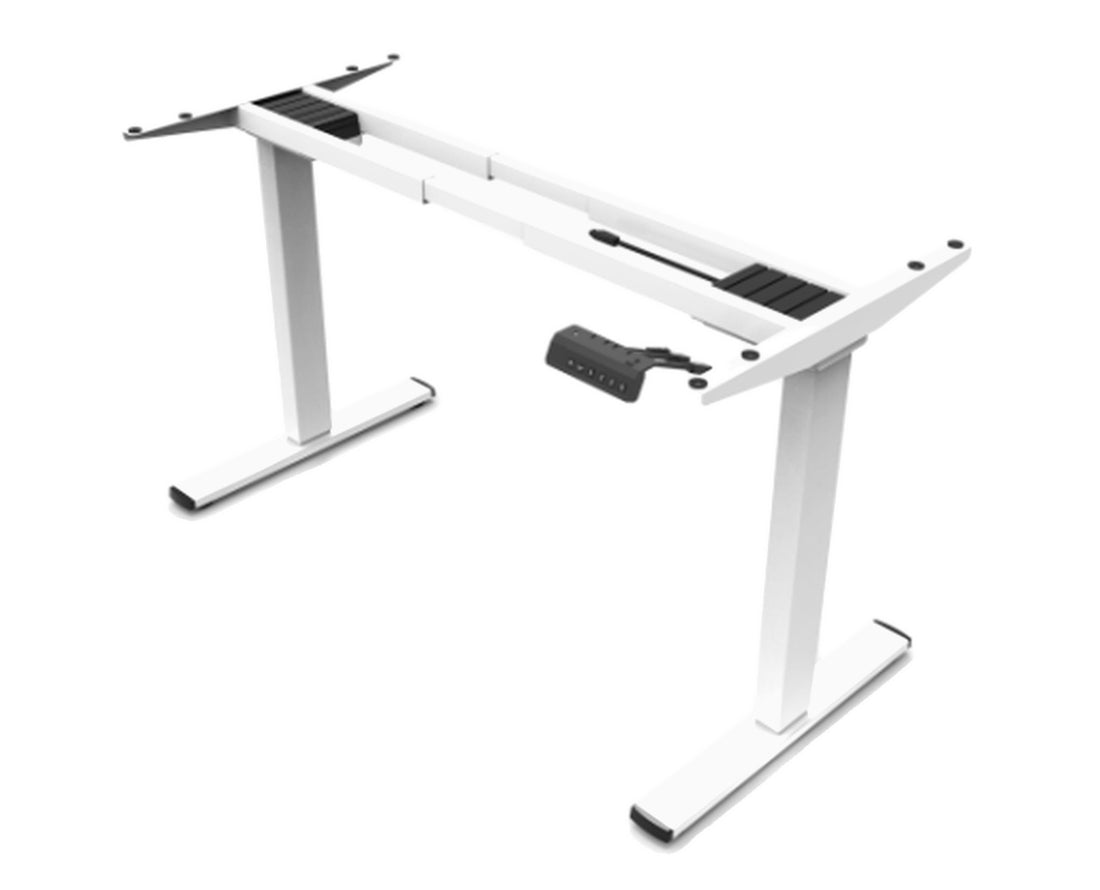

DM22F-04D is a dual-motor, two-stage electric height-adjustable desk frame in white. It is sold as a frame only: the desktop shown in some photos is not included.
Guides: See what’s in the box · How to assemble
Features
- Dual motors with two-stage legs, 100 kg maximum load
- Height range 730–1180 mm (including desktop thickness), lift speed 22 mm/s
- Hand controller with LED height display, up/down buttons, three memory presets and an M button; saved heights are kept after a power cut
- Child lock: hold the up and down buttons for 5 seconds to stop the desk being moved
- Obstacle detection with adjustable sensitivity: when triggered, the desk stops and moves back about 5 cm
- Tilt sensor with adjustable sensitivity
- Dual telescopic crossbar, width range 1000–1700 mm
- Noise level under 50 dB
- Steel feet with plastic end caps
- Cup holder and headphone hook included
Size and packaging
Leg tube 80 × 50 mm outer and 75 × 45 mm inner; foot 20 × 70 × 600 mm; side bracket length 570 mm. Packed weight 20.7 kg gross / 19.1 kg net. Carton size 105.5 × 34.5 × 16 cm.
Delivery
We deliver to mainland Australia from our Sydney stock and aim to dispatch orders within 1–2 business days of payment. We don't currently deliver to Tasmania. One delivery charge applies to your whole order, based on the number of items and the delivery state, and is shown at checkout. Free pickup from our Auburn NSW warehouse is also available.
Estimated transit time after dispatch: 1–2 business days to Sydney metro, 2–4 to Canberra, Melbourne and Brisbane metro, 3–5 to Adelaide metro, and up to 14 business days to regional WA and NT. Delivery times are estimates and are not guaranteed.
Returns
Returns are accepted within 7 days of delivery if the item is unused, in its original condition and packaging, with proof of purchase. Return shipping is paid by the customer unless the item is faulty, damaged or incorrectly supplied. To start a return, email info@shuoergolab.com.au with your order number.
See also our shipping policy.
Minimum order
1 unit.
Volume discounts
- 5% off when you order 5 or more
- 10% off when you order 10 or more
- 15% off when you order 20 or more
Discounts are applied automatically in your cart.
Quotes and larger orders
For larger quantities, send the quantity and your delivery postcode to info@shuoergolab.com.au or use the contact form.
Specifications
Technical Specifications
| Model | DM22F-04D |
| Type | Dual-motor, two-stage electric height-adjustable desk frame |
| Colour | White |
| Max load | 100 kg |
| Height range | 730–1180 mm (including desktop thickness) |
| Width range | 1000–1700 mm |
| Lift speed | 22 mm/s |
| Noise | under 50 dB |
| Controller | LED height display, up/down buttons, 3 memory buttons and M button |
| Child lock | Yes |
| Obstacle detection | Yes, stops and moves back about 5 cm when triggered (adjustable sensitivity) |
| Tilt sensor | Yes (adjustable sensitivity) |
| Crossbar | dual telescopic |
| Leg tube | outer 80 × 50 mm (wall 1.5 mm), inner 75 × 45 mm (wall 1.2 mm) |
| Side bracket length | 570 mm |
| Foot | 20 × 70 × 600 mm steel tube with plastic end caps |
| Included accessories | Cup holder and headphone hook |
| Packed weight (gross / net) | 20.7 kg / 19.1 kg |
| Carton size | 105.5 × 34.5 × 16 cm |
| Desktop | Not included |
